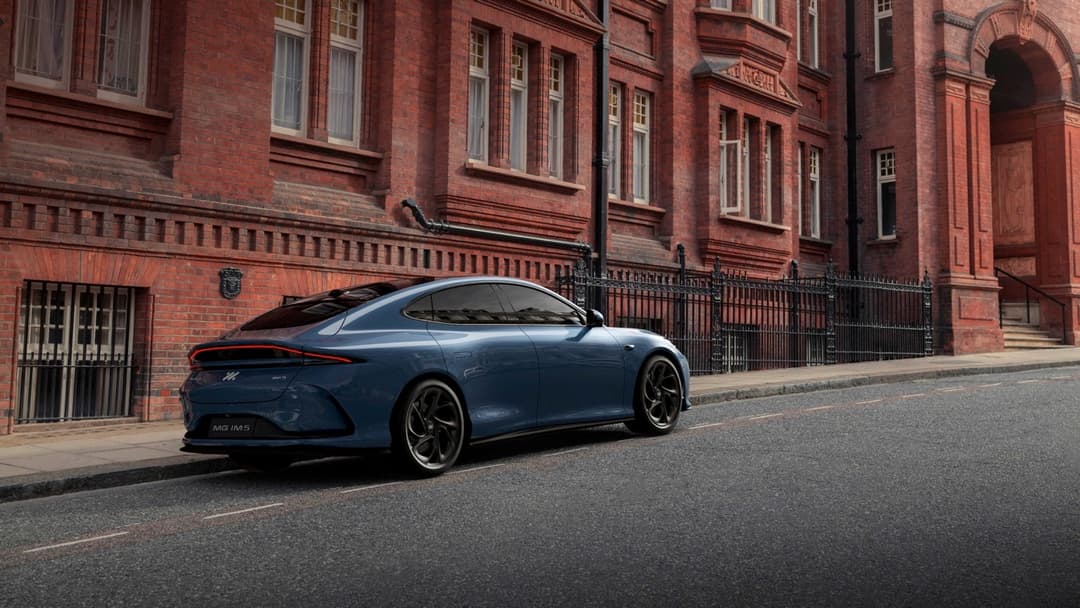

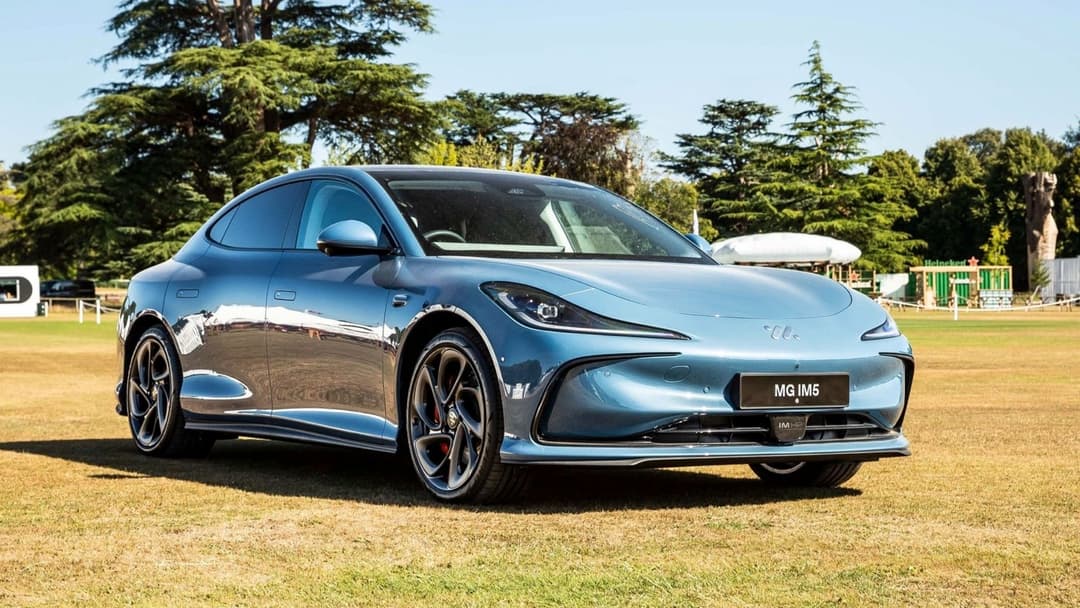

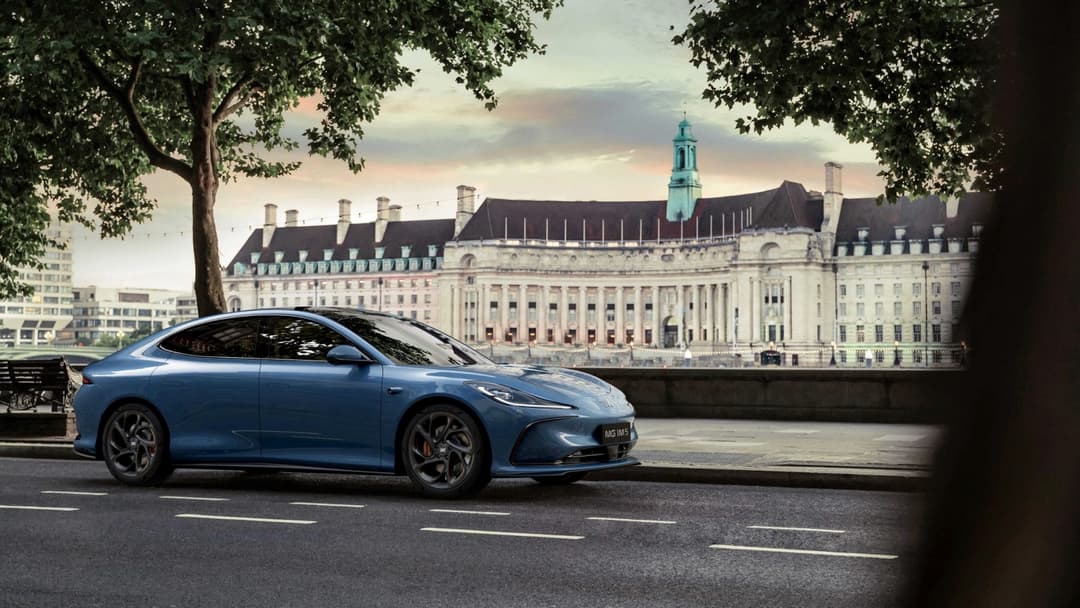

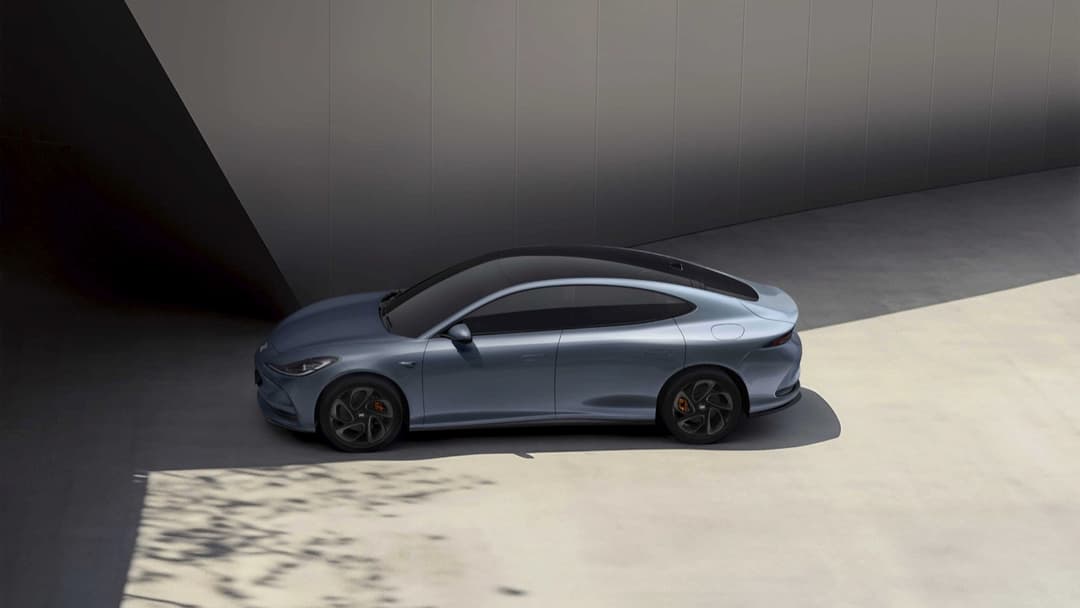

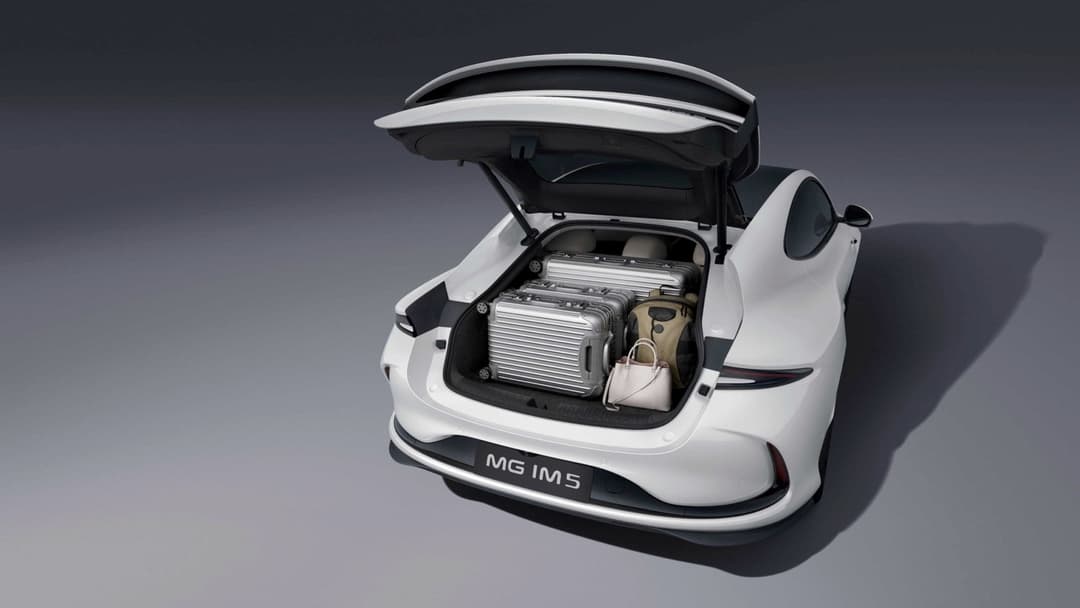

IM IM5 Platinum Charging Guide: Time, Speed, Power
Price: $69,990
Available since 2025
Key EV Specs
100kWh
Battery Size (capacity)
655 km
Range (WLTP)
147 Wh/km
Efficiency
4.9 s
Acceleration (0-100 km/hr)
11 kW AC / 396 kW DC
Charge Power (max)
IM IM5 Platinum Charging Overview and Charging Specs
The IM IM5 Platinum is equipped with a 100 kWh battery and supports both AC and DC charging. With the right setup, you can charge conveniently at home or use public charging stations for faster top-ups. This guide covers charging times, costs, plug types, and tips to maximise efficiency. The IM5 Platinum uses a Type 2 plug for AC charging and a CCS connector for DC fast charging, both standard in Australia.
| Battery size (capacity) | 100 kWh |
| Battery Size (useable) | 96.5 kWh |
| Battery Chemistry | NMC |
| Charge Port Type | Type 2 |
| Charge Port Location | Left Side - Rear |
| Charge Power (max) | 11 kW |
| Charge Speed | 67 km/h |
| Charge Time (0-100%) | 10 hrs 6 mins |
IM IM5 Platinum Charging Times and Speeds
The IM IM5 Platinum has a charging limit of 11 kW AC. This means that a three-phase 22kW AC charger will only supply power at 11 kW AC. If you are using a 7.2 kW AC charger, power will be limited to 7.2 kW AC. The table below provides charging times across different charger types.
Use our EV charging calculator if you want to customise your charge level and speed.
Charging Station Comparison
| Charger Type | Power Output (Average) | 0–100% Time | 10–80% Time | Speed |
|---|---|---|---|---|
| Home AC (7kW) | 7 kW | 14.5 hr | - | 48 km/h |
| Public AC (22kW) | 11 kW | 9.2 hr | - | 75 km/h |
| DC Fast (50kW) | 50 kW | - | 85 min | 340 km/h |
| DC Fast (150kW) | 150 kW | - | 28 min | 1020 km/h |
| Ultra-Fast DC (350kW) | 193 kW | - | 22 min | 1313 km/h |
IM IM5 Platinum Charging Costs & Energy Use
The cost of charging a IM IM5 Platinum will depend on where it is being charged. The costs of charging from home versus charging as a fast public charging station vary significantly.
The cost of fully charging a IM IM5 Platinum on a typical home flat energy tariff of $0.35/kWh is $35.00.
The cost of fully charging the IM IM5 Platinum at a fast public station, where rates as high as $0.7/kWh will be $70.00.
Use our EV charging calculator to get a personalised estimate of the charging costs for a IM IM5 Platinum
CCS CompatibleIM IM5 Platinum Fast Charging & Tesla Supercharger Compatibility
The IM IM5 Platinum can charge from 10–80% in approximately 21 minutes on a high-power DC charger.
While most Tesla Superchargers in Australia now support non-Tesla EVs such as the IM IM5 Platinum via the CCS2 standard, always check the Tesla app for station compatibility.
Charging Specifications:
Usable Battery Capacity:
100 kWh
Fast Charge Power (max):
396 kW
Fast Charge Power (avg):
193 kW
Max Fast Charging Speed:
1245 km/h
Charge Port:
Type 2
Port Location:
Left Side (Rear)
IM IM5 Platinum Recommended Charge Level
The IM IM5 Platinum uses an NMC battery. The typical recommended charge limit is 80% to 90% for daily use and only charge to 100% for longer trips.
The recommended charge limit for NMC batteries is due to higher degradation risk from a higher state of charge.
Check your owners manual for specific recommendations for the IM IM5 Platinum.
IM IM5 Platinum Bidirectional Charging (V2G/V2H/V2L)
The IM IM5 Platinum does not currently support bidirectional charging features such as Vehicle-to-Grid (V2G), Vehicle-to-Home (V2H), or Vehicle-to-Load (V2L).
| Feature | Supported | Max Power Output |
|---|---|---|
| Vehicle-to-Grid (V2G) | No | - |
| Vehicle-to-Home (V2H) | No | - |
| Vehicle-to-Load (V2L) | No | - kW |
