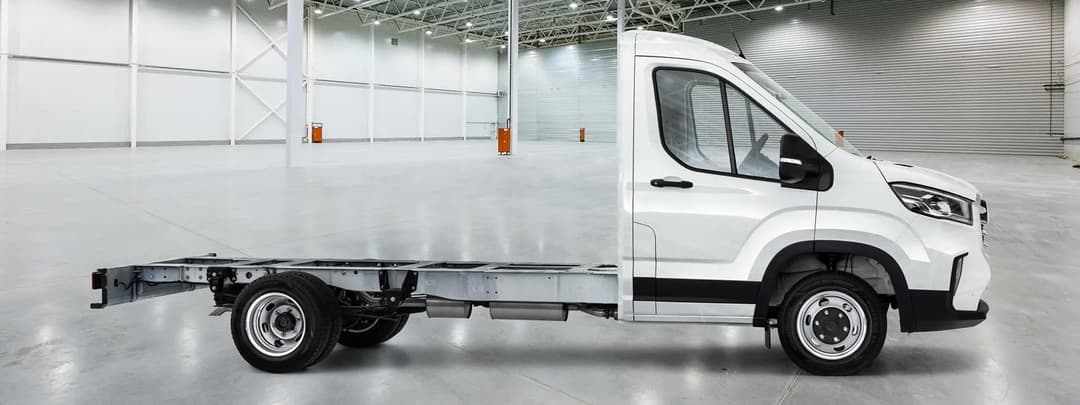

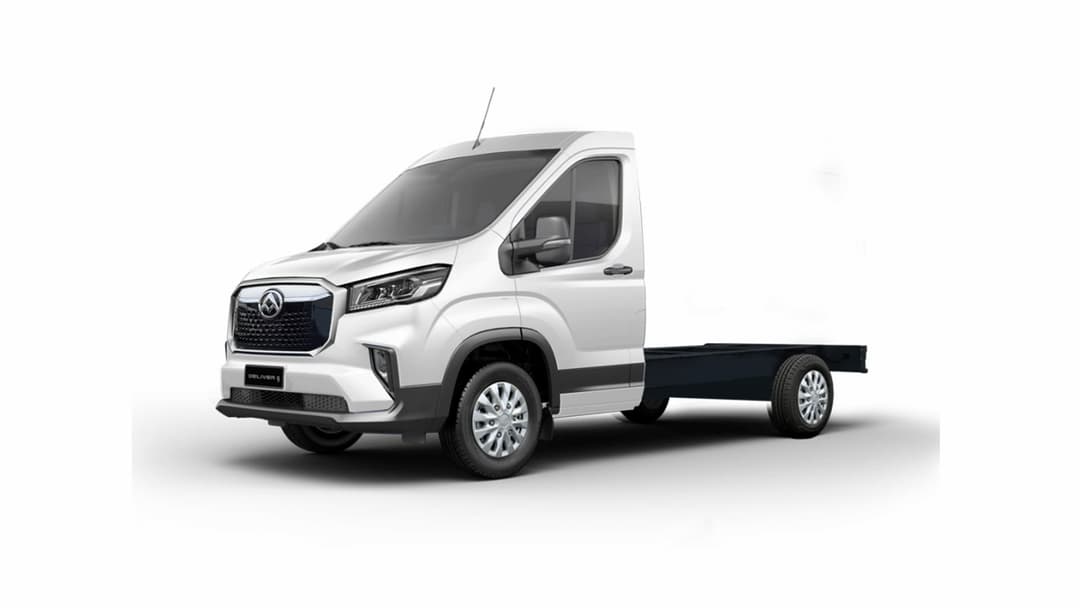

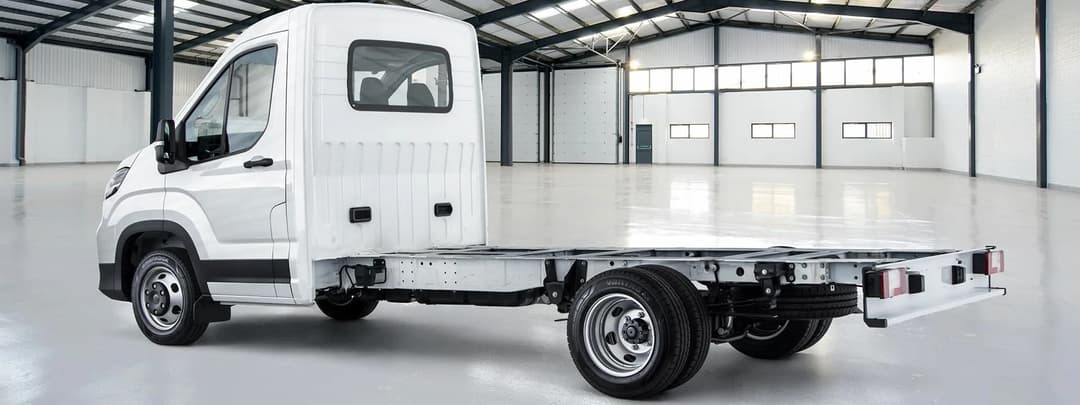

LDV eDeliver 9 Cab Chassis

LDV eDeliver 9 Cab Chassis Charging Speed, Time and Cost

Van · 2022 – Current

Usable Battery
60.7kWh
AC Charging
11kW
DC Charging
90kW
10–80% Time
36min

The LDV eDeliver 9 Cab Chassis charges at up to 90 kW on a DC fast charger and 11 kW on AC. It takes about 36 minutes to charge from 10 to 80% and 9.2 hours to charge from empty on a 7 kW home charger. It has a 60.7 kWh LFP battery.

LDV eDeliver 9 Cab Chassis Key Battery and Charging Specs

LDV eDeliver 9 Cab Chassis battery and charging specs
Usable Battery60.7 kWh
Battery ChemistryLFP
Charge PortType 2 (AC), CCS2 (DC)
Charge Port LocationFront Center
0 to 100% at Home (7 kW)9.2 hrs
Efficiency404 Wh/km

The LDV eDeliver 9 Cab Chassis uses a 60.7 kWh LFP battery. LFP batteries handle regular charging to 100% with less wear than other chemistries (LFP vs NMC vs NCA batteries explained). Check your owner's manual for LDV's advice.

Compare the best home EV charger in Australia and work out how much electric car charging costs for your driving.

LDV eDeliver 9 Cab Chassis Charging Times

LDV eDeliver 9 Cab Chassis Max Charging Speed

LDV eDeliver 9 Cab Chassis maximum charging speed
TypeMax Speed
AC charging speed11 kW
DC charging speed (peak)90 kW

How Long Does a LDV eDeliver 9 Cab Chassis Take to Charge?

Power point, wall charger and DC fast charger for the LDV eDeliver 9 Cab Chassis
LDV eDeliver 9 Cab Chassis charging times by charger
ChargerPower UsedTimeRange Added
10A power point (2.3 kW)2.3 kW27.9 hrs (0 to 100%)6 km per hour
15A power point (3.6 kW)3.6 kW17.8 hrs (0 to 100%)9 km per hour
7 kW home wall charger7 kW9.2 hrs (0 to 100%)17 km per hour
11 kW three-phase charger11 kW5.8 hrs (0 to 100%)27 km per hour
50 kW DC fast charger47.5 kW54 min (10 to 80%)29 km in 15 min
150 kW DC fast charger70.8 kW36 min (10 to 80%)44 km in 15 min

Icons: grey = power point, green outline = home charger, dark = public DC fast charger.

Best Home Charger for the LDV eDeliver 9 Cab Chassis

A 7 kW single-phase wall charger suits the LDV eDeliver 9 Cab Chassis. It charges the battery from empty to full in 9.2 hrs and adds about 17 km of range every hour. If your home already has three-phase power, an 11 kW charger uses the LDV eDeliver 9 Cab Chassis's full AC speed and charges it in 5.8 hrs.

Find the Right Charger for Your LDV eDeliver 9 Cab Chassis

See the real charging speed each home charger gets with this car. 3 quick questions.

Home chargers for the LDV eDeliver 9 Cab Chassis
Detail7 kW Single Phase11 kW Three Phase
0 to 100%9.2 hrs5.8 hrs
Range per hour17 km27 km
Needs three-phase powerNoYes
Typical installed cost$1,200 to $2,800$1,800 to $3,500 with existing three-phase power. $4,000 to $12,000+ if your home needs converting

Installed costs are indicative for Australia and include the charger and standard installation. A switchboard upgrade, if needed, can add $900 to $3,500.

Does the LDV eDeliver 9 Cab Chassis Come With a Charger?

New EVs like the LDV eDeliver 9 Cab Chassis normally come with a complimentary portable charger that plugs into a standard 10A power point. It's handy for top-ups but takes about 27.9 hrs to fully charge the battery. A 7 kW wall charger does it in 9.2 hrs.

How Much Does It Cost to Charge a LDV eDeliver 9 Cab Chassis?

A full charge costs $4.25 at home on an EV plan at $0.07/kWh, and $21.25 on a typical flat tariff of $0.35/kWh. At a public DC charger at up to $0.70/kWh it costs $42.49. A petrol mid-size van uses about 7.6 L/100 km, which at $2.00 a litre costs $15.20 per 100 km.

Cost to charge the LDV eDeliver 9 Cab Chassis compared with a petrol mid-size van
Where You ChargeFull ChargePer 100 kmPer YearSaving vs Petrol
Petrol mid-size vanNot applicable$15.20$2,280Not applicable
Home, flat rate $0.35/kWh$21.25$14.14$2,121$159
Home, EV plan $0.07/kWh$4.25$2.83$424$1,856
Public DC $0.70/kWh$42.49$28.28$4,242$-1,962

Icons: grey = petrol, green outline = home charging, dark = public charging.

Per year is based on 15,000 km a year.

Switching from a flat tariff to an EV plan saves about $1,697 a year on charging the LDV eDeliver 9 Cab Chassis at home.

LDV eDeliver 9 Cab Chassis Fast Charging Rank and Road Trip Charging

The LDV eDeliver 9 Cab Chassis ranks 5 of 5 van EVs priced within $10,000 of it for DC fast charging power.

DC fast charging rank for van EVs priced near the LDV eDeliver 9 Cab Chassis
RankVehiclePricePeak DC (kW)10–80% time
1LDV Mifa 9 Mode$106,00012036 min
2Mercedes-Benz eSprinter 420 MWB$104,86411532 min
2Ford e-Transit Mid Roof$104,99011534 min
2Ford e-Transit High Roof$106,49011534 min
5LDV eDeliver 9 Cab Chassis$99,9909036 min

LDV eDeliver 9 Cab Chassis 500 km and 1,000 km Road Trips

Using Zecar's estimated highway range of 106 km and an average of 100 km/h: A 500 km trip needs 6 fast charging stops of about 36 minutes each, 3 hr 36 min in total, for a total trip time of about 8 hr 36 min. A 1,000 km trip needs 13 fast charging stops of about 36 minutes each, 7 hr 48 min in total, for a total trip time of about 17 hr 48 min.

Estimated road trip charging for the LDV eDeliver 9 Cab Chassis
TripCharging stopsCharging timeTotal trip time
500 km63 hr 36 min8 hr 36 min
1,000 km137 hr 48 min17 hr 48 min

Total trip time is driving at an average of 100 km/h plus charging time. Estimates assume a start at 100%, arrival at no less than 10% and charging from 10% to 80% at a 90 kW-capable charger. Real times vary with weather, speed, load and charger.

Plan your trip costs with the EV charging calculator →

LDV eDeliver 9 Cab Chassis Bidirectional Charging (V2X): V2L, V2H and V2G

  • V2L powers appliances from the car's socket.
  • V2H powers your home during an outage or peak pricing.
  • V2G sends energy back to the grid.
LDV eDeliver 9 Cab Chassis bidirectional charging support
FeatureSupportedMax Output
V2LNo
V2HNo
V2GNo

The LDV eDeliver 9 Cab Chassis does not support bidirectional charging.

LDV eDeliver 9 Cab Chassis Deals and Finance

Pricing starts from $99,990. A novated lease lets you pay for the car and its running costs from your pre-tax salary, and eligible EVs are exempt from fringe benefits tax. How the EV FBT exemption works

Get a Novated Lease Quote

LDV eDeliver 9 Cab Chassis Charging FAQ
