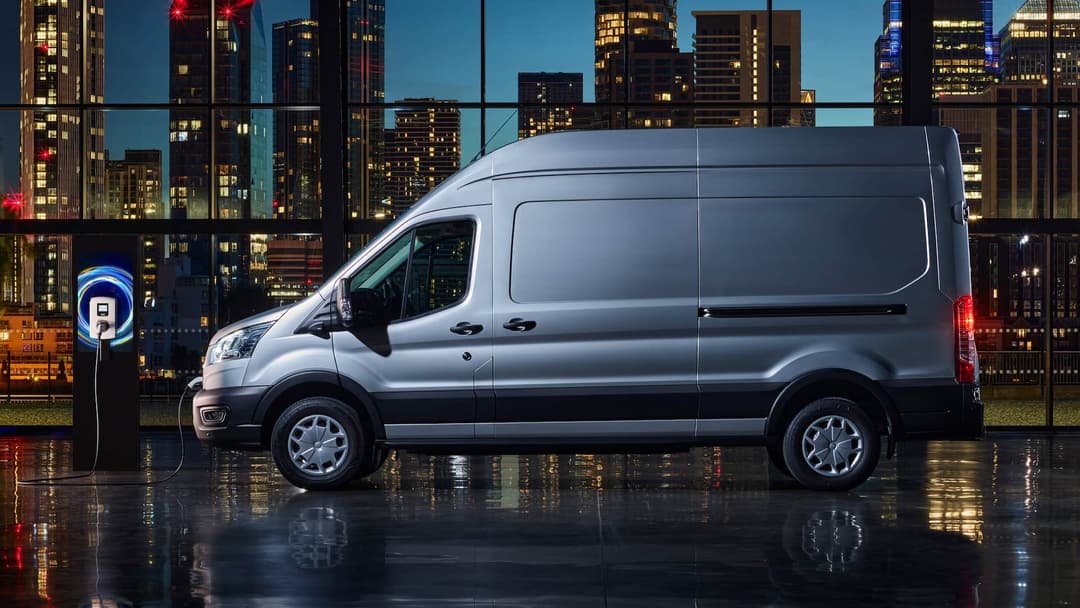

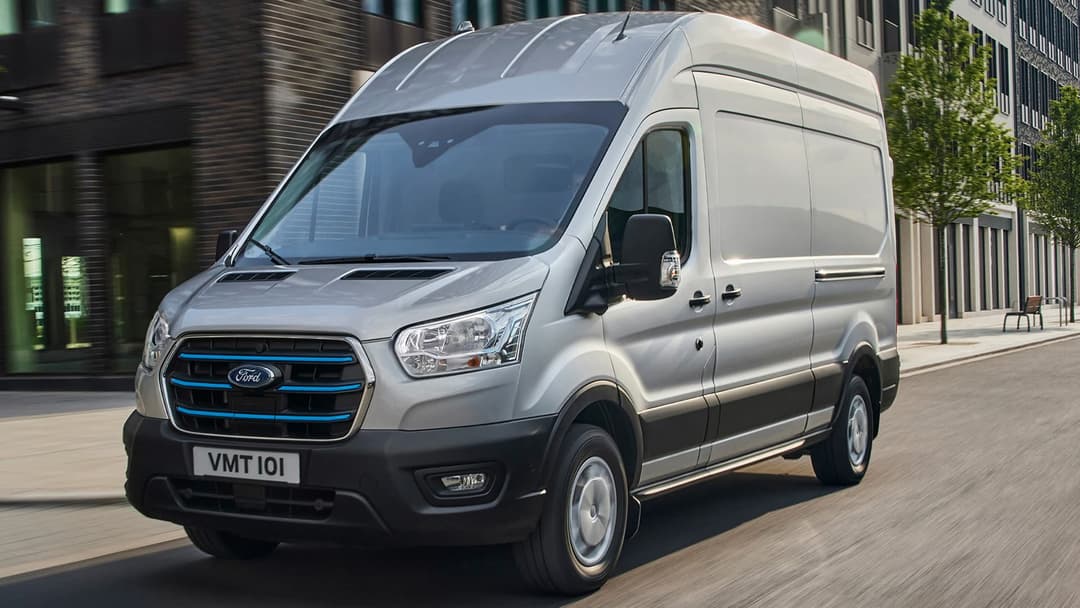

Ford e-Transit High Roof

Ford e-Transit High Roof Charging Speed, Time and Cost

Van · 2022 – CurrentV2L

Usable Battery
68kWh
AC Charging
11.3kW
DC Charging
115kW
10–80% Time
34min

The Ford e-Transit High Roof charges at up to 115 kW on a DC fast charger and 11.3 kW on AC. It takes about 34 minutes to charge from 10 to 80% and 10.3 hours to charge from empty on a 7 kW home charger. It has a 68 kWh NMC battery.

Ford e-Transit High Roof Key Battery and Charging Specs

Ford e-Transit High Roof battery and charging specs
Usable Battery68 kWh
Battery ChemistryNMC
Charge PortType 2 (AC), CCS2 (DC)
Charge Port LocationFront Center
0 to 100% at Home (7 kW)10.3 hrs
Efficiency231 Wh/km

The Ford e-Transit High Roof uses a 68 kWh NMC battery. For daily driving, charge to 80 to 90% and save 100% for long trips (LFP vs NMC vs NCA batteries explained). Check your owner's manual for Ford's advice.

Compare the best home EV charger in Australia and work out how much electric car charging costs for your driving.

Ford e-Transit High Roof Charging Times

Ford e-Transit High Roof Max Charging Speed

Ford e-Transit High Roof maximum charging speed
TypeMax Speed
AC charging speed11.3 kW
DC charging speed (peak)115 kW

How Long Does a Ford e-Transit High Roof Take to Charge?

Power point, wall charger and DC fast charger for the Ford e-Transit High Roof
Ford e-Transit High Roof charging times by charger
ChargerPower UsedTimeRange Added
10A power point (2.3 kW)2.3 kW31.3 hrs (0 to 100%)10 km per hour
15A power point (3.6 kW)3.6 kW20.0 hrs (0 to 100%)16 km per hour
7 kW home wall charger7 kW10.3 hrs (0 to 100%)30 km per hour
11 kW three-phase charger11 kW6.5 hrs (0 to 100%)48 km per hour
22 kW public AC charger11.3 kW6.4 hrs (0 to 100%)49 km per hour
50 kW DC fast charger47.5 kW60 min (10 to 80%)51 km in 15 min
150 kW DC fast charger84 kW34 min (10 to 80%)91 km in 15 min

Icons: grey = power point, green outline = home charger, dark = public DC fast charger.

Best Home Charger for the Ford e-Transit High Roof

A 7 kW single-phase wall charger suits the Ford e-Transit High Roof. It charges the battery from empty to full in 10.3 hrs and adds about 30 km of range every hour. If your home already has three-phase power, an 11.3 kW charger uses the Ford e-Transit High Roof's full AC speed and charges it in 6.4 hrs.

Find the Right Charger for Your Ford e-Transit High Roof

See the real charging speed each home charger gets with this car. 3 quick questions.

Home chargers for the Ford e-Transit High Roof
Detail7 kW Single Phase11.3 kW Three Phase
0 to 100%10.3 hrs6.4 hrs
Range per hour30 km49 km
Needs three-phase powerNoYes
Typical installed cost$1,200 to $2,800$1,800 to $3,500 with existing three-phase power. $4,000 to $12,000+ if your home needs converting

Installed costs are indicative for Australia and include the charger and standard installation. A switchboard upgrade, if needed, can add $900 to $3,500.

Does the Ford e-Transit High Roof Come With a Charger?

New EVs like the Ford e-Transit High Roof normally come with a complimentary portable charger that plugs into a standard 10A power point. It's handy for top-ups but takes about 31.3 hrs to fully charge the battery. A 7 kW wall charger does it in 10.3 hrs.

How Much Does It Cost to Charge a Ford e-Transit High Roof?

A full charge costs $4.76 at home on an EV plan at $0.07/kWh, and $23.80 on a typical flat tariff of $0.35/kWh. At a public DC charger at up to $0.70/kWh it costs $47.60. A petrol mid-size van uses about 7.6 L/100 km, which at $2.00 a litre costs $15.20 per 100 km.

Cost to charge the Ford e-Transit High Roof compared with a petrol mid-size van
Where You ChargeFull ChargePer 100 kmPer YearSaving vs Petrol
Petrol mid-size vanNot applicable$15.20$2,280Not applicable
Home, flat rate $0.35/kWh$23.80$8.09$1,213$1,067
Home, EV plan $0.07/kWh$4.76$1.62$243$2,037
Public DC $0.70/kWh$47.60$16.17$2,426$-146

Icons: grey = petrol, green outline = home charging, dark = public charging.

Per year is based on 15,000 km a year.

Switching from a flat tariff to an EV plan saves about $970 a year on charging the Ford e-Transit High Roof at home.

Ford e-Transit High Roof Fast Charging Rank and Road Trip Charging

The Ford e-Transit High Roof ranks 2 of 6 van EVs priced within $10,000 of it for DC fast charging power.

DC fast charging rank for van EVs priced near the Ford e-Transit High Roof
RankVehiclePricePeak DC (kW)10–80% time
1LDV Mifa 9 Mode$106,00012036 min
2Mercedes-Benz eSprinter 420 MWB$104,86411532 min
2Ford e-Transit Mid Roof$104,99011534 min
2Ford e-Transit High Roof$106,49011534 min
5Mercedes-Benz eVito Tourer$116,11511045 min

Ford e-Transit High Roof 500 km and 1,000 km Road Trips

Using Zecar's estimated highway range of 215 km and an average of 100 km/h: A 500 km trip needs 3 fast charging stops of about 34 minutes each, 1 hr 42 min in total, for a total trip time of about 6 hr 42 min. A 1,000 km trip needs 6 fast charging stops of about 34 minutes each, 3 hr 24 min in total, for a total trip time of about 13 hr 24 min.

Estimated road trip charging for the Ford e-Transit High Roof
TripCharging stopsCharging timeTotal trip time
500 km31 hr 42 min6 hr 42 min
1,000 km63 hr 24 min13 hr 24 min

Total trip time is driving at an average of 100 km/h plus charging time. Estimates assume a start at 100%, arrival at no less than 10% and charging from 10% to 80% at a 115 kW-capable charger. Real times vary with weather, speed, load and charger.

Plan your trip costs with the EV charging calculator →

Ford e-Transit High Roof Bidirectional Charging (V2X): V2L, V2H and V2G

  • V2L powers appliances from the car's socket.
  • V2H powers your home during an outage or peak pricing.
  • V2G sends energy back to the grid.
Ford e-Transit High Roof bidirectional charging support
FeatureSupportedMax Output
V2LYes2.4 kW
V2HNo
V2GNo

The Ford e-Transit High Roof supports V2L and can power appliances up to 2.4 kW. It does not support V2H or V2G.
