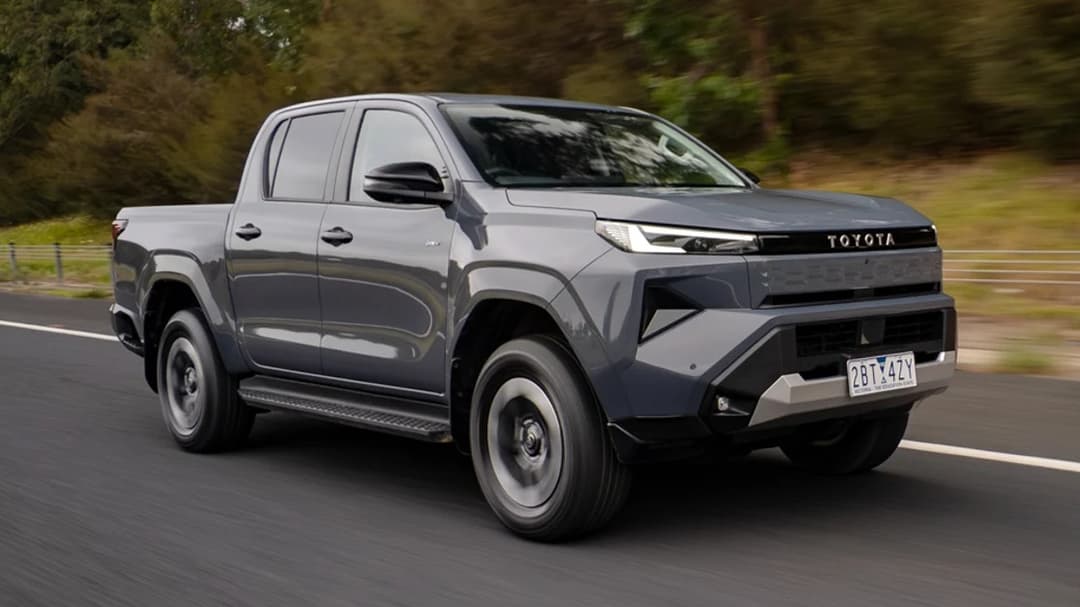

Toyota Hilux SR5 BEV Charging Guide: Time, Speed, Power
Price: $84,990
Available since 2026
Key EV Specs
60.2kWh
Battery Size (capacity)
270 km
Range (WLTP)
219 Wh/km
Efficiency
9.9 s
Acceleration (0-100 km/hr)
10 kW AC / 150 kW DC
Charge Power (max)
Toyota Hilux SR5 BEV Charging Overview and Charging Specs
The Toyota Hilux SR5 BEV is equipped with a 60.2 kWh battery and supports both AC and DC charging. With the right setup, you can charge conveniently at home or use public charging stations for faster top-ups. This guide covers charging times, costs, plug types, and tips to maximise efficiency. The Hilux SR5 BEV uses a Type 2 plug for AC charging and a CCS connector for DC fast charging, both standard in Australia.
| Battery size (capacity) | 60.2 kWh |
| Battery Size (useable) | 59.2 kWh |
| Battery Chemistry | NMC |
| Charge Port Type | Type 2 |
| Charge Port Location | Left Side - Front |
| Charge Power (max) | 10 kW |
| Charge Speed | 10 km/h |
| Charge Time (0-100%) | 6 hrs 30 mins |
Toyota Hilux SR5 BEV Charging Times and Speeds
The Toyota Hilux SR5 BEV has a charging limit of 10 kW AC. This means that a three-phase 22kW AC charger will only supply power at 10 kW AC. If you are using a 7.2 kW AC charger, power will be limited to 7.2 kW AC. The table below provides charging times across different charger types.
Use our EV charging calculator if you want to customise your charge level and speed.
Charging Station Comparison
| Charger Type | Power Output (Average) | 0–100% Time | 10–80% Time | Speed |
|---|---|---|---|---|
| Home AC (7kW) | 7 kW | 8.9 hr | - | 32 km/h |
| Public AC (22kW) | 10 kW | 6.2 hr | - | 46 km/h |
| DC Fast (50kW) | 50 kW | - | 52 min | 228 km/h |
| DC Fast (150kW) | 83 kW | - | 32 min | 379 km/h |
| Ultra-Fast DC (350kW) | 83 kW | - | 32 min | 379 km/h |
Toyota Hilux SR5 BEV Charging Costs & Energy Use
The cost of charging a Toyota Hilux SR5 BEV will depend on where it is being charged. The costs of charging from home versus charging as a fast public charging station vary significantly.
The cost of fully charging a Toyota Hilux SR5 BEV on a typical home flat energy tariff of $0.35/kWh is $21.07.
The cost of fully charging the Toyota Hilux SR5 BEV at a fast public station, where rates as high as $0.7/kWh will be $42.14.
Use our EV charging calculator to get a personalised estimate of the charging costs for a Toyota Hilux SR5 BEV
CCS CompatibleToyota Hilux SR5 BEV Fast Charging & Tesla Supercharger Compatibility
The Toyota Hilux SR5 BEV can charge from 10–80% in approximately 30 minutes on a high-power DC charger.
While most Tesla Superchargers in Australia now support non-Tesla EVs such as the Toyota Hilux SR5 BEV via the CCS2 standard, always check the Tesla app for station compatibility.
Charging Specifications:
Usable Battery Capacity:
60.2 kWh
Fast Charge Power (max):
150 kW
Fast Charge Power (avg):
83 kW
Max Fast Charging Speed:
616 km/h
Charge Port:
Type 2
Port Location:
Left Side (Front)
Toyota Hilux SR5 BEV Recommended Charge Level
The Toyota Hilux SR5 BEV uses an NMC battery. The typical recommended charge limit is 80% to 90% for daily use and only charge to 100% for longer trips.
The recommended charge limit for NMC batteries is due to higher degradation risk from a higher state of charge.
Check your owners manual for specific recommendations for the Toyota Hilux SR5 BEV.
Toyota Hilux SR5 BEV Bidirectional Charging (V2G/V2H/V2L)
The Toyota Hilux SR5 BEV currently supports bidirectional charging features such as Vehicle-to-Load (V2L).
| Feature | Supported | Max Power Output |
|---|---|---|
| Vehicle-to-Grid (V2G) | No | - |
| Vehicle-to-Home (V2H) | No | - |
| Vehicle-to-Load (V2L) | Yes | 1.5 kW |
