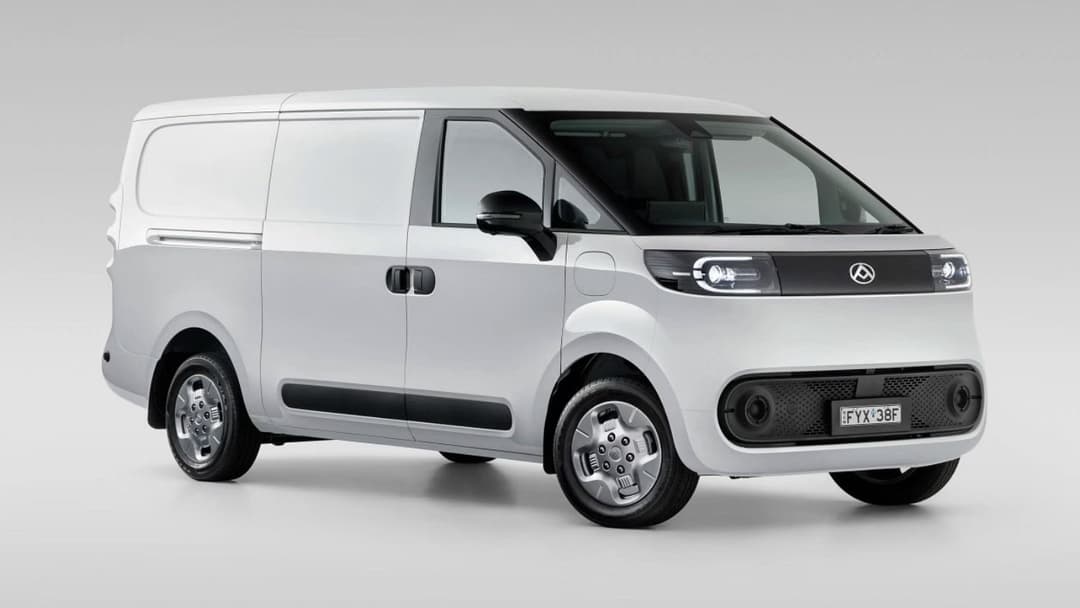

LDV eDeliver 5 SWB Low Roof Charging Guide: Time, Speed, Power
Price: $52,621
Available since 2026
Key EV Specs
67kWh
Battery Size (capacity)
335 km
Range (WLTP)
191 Wh/km
Efficiency
11 s
Acceleration (0-100 km/hr)
11 kW AC / 70 kW DC
Charge Power (max)
LDV eDeliver 5 SWB Low Roof Charging Overview and Charging Specs
The LDV eDeliver 5 SWB Low Roof is equipped with a 67 kWh battery and supports both AC and DC charging. With the right setup, you can charge conveniently at home or use public charging stations for faster top-ups. This guide covers charging times, costs, plug types, and tips to maximise efficiency. The eDeliver 5 SWB Low Roof uses a Type 2 plug for AC charging and a CCS connector for DC fast charging, both standard in Australia.
| Battery size (capacity) | 67 kWh |
| Battery Size (useable)* | 64 kWh |
| Battery Chemistry | LFP |
| Charge Port Type | Type 2 |
| Charge Port Location | Right Side - Front |
| Charge Power (max) | 11 kW |
| Charge Speed | 52 km/h |
| Charge Time (0-100%) | 6 hrs 30 mins |
LDV eDeliver 5 SWB Low Roof Charging Times and Speeds
The LDV eDeliver 5 SWB Low Roof has a charging limit of 11 kW AC. This means that a three-phase 22kW AC charger will only supply power at 11 kW AC. If you are using a 7.2 kW AC charger, power will be limited to 7.2 kW AC. The table below provides charging times across different charger types.
Use our EV charging calculator if you want to customise your charge level and speed.
Charging Station Comparison
| Charger Type | Power Output (Average) | 0–100% Time | 10–80% Time | Speed |
|---|---|---|---|---|
| Home AC (7kW) | 7 kW | 9.6 hr | - | 37 km/h |
| Public AC (22kW) | 11 kW | 6.1 hr | - | 58 km/h |
| DC Fast (50kW) | 50 kW | - | 57 min | 262 km/h |
| DC Fast (150kW) | 64 kW | - | 44 min | 335 km/h |
| Ultra-Fast DC (350kW) | 64 kW | - | 44 min | 335 km/h |
LDV eDeliver 5 SWB Low Roof Charging Costs & Energy Use
The cost of charging a LDV eDeliver 5 SWB Low Roof will depend on where it is being charged. The costs of charging from home versus charging as a fast public charging station vary significantly.
The cost of fully charging a LDV eDeliver 5 SWB Low Roof on a typical home flat energy tariff of $0.35/kWh is $23.45.
The cost of fully charging the LDV eDeliver 5 SWB Low Roof at a fast public station, where rates as high as $0.7/kWh will be $46.90.
Use our EV charging calculator to get a personalised estimate of the charging costs for a LDV eDeliver 5 SWB Low Roof
CCS CompatibleLDV eDeliver 5 SWB Low Roof Fast Charging & Tesla Supercharger Compatibility
The LDV eDeliver 5 SWB Low Roof can charge from 10–80% in approximately 42 minutes on a high-power DC charger.
While most Tesla Superchargers in Australia now support non-Tesla EVs such as the LDV eDeliver 5 SWB Low Roof via the CCS2 standard, always check the Tesla app for station compatibility.
Charging Specifications:
Usable Battery Capacity:
67 kWh
Fast Charge Power (max):
70 kW
Fast Charge Power (avg):
64 kW
Max Fast Charging Speed:
330 km/h
Charge Port:
Type 2
Port Location:
Right Side (Front)
LDV eDeliver 5 SWB Low Roof Recommended Charge Level
The LDV eDeliver 5 SWB Low Roof uses an LFP battery. The typical recommended charge limit is 100% for daily use.
The key advantage of LFP is the freedom to fully charge the pack to 100% every time with substantially less degradation concerns compared to other chemistries.
Check your owners manual for specific recommendations for the LDV eDeliver 5 SWB Low Roof.
LDV eDeliver 5 SWB Low Roof Bidirectional Charging (V2G/V2H/V2L)
The LDV eDeliver 5 SWB Low Roof currently supports bidirectional charging features such as Vehicle-to-Load (V2L).
| Feature | Supported | Max Power Output |
|---|---|---|
| Vehicle-to-Grid (V2G) | No | - |
| Vehicle-to-Home (V2H) | No | - |
| Vehicle-to-Load (V2L) | Yes | 6.6 kW |
