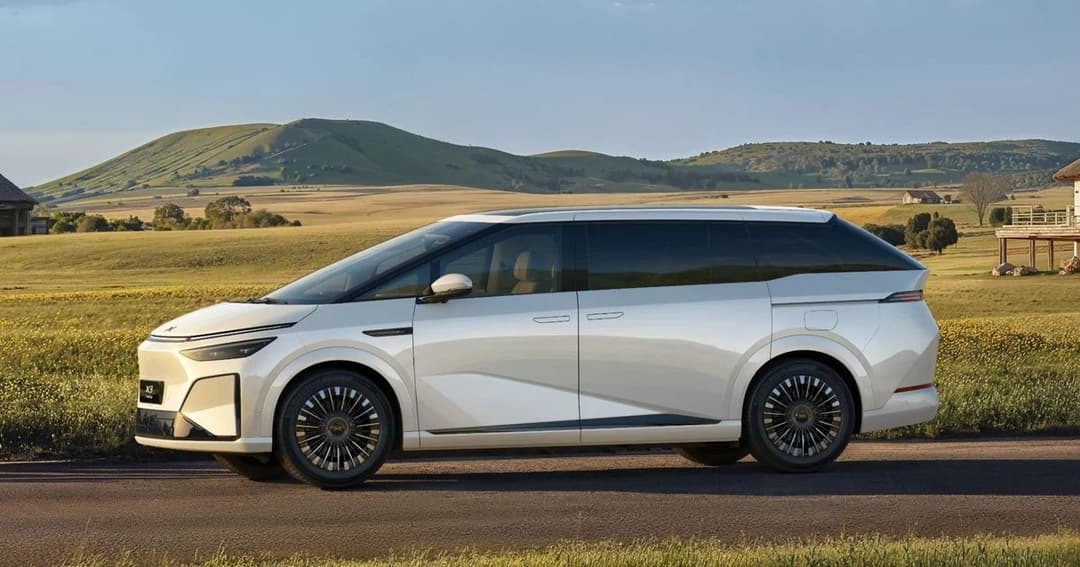

XPENG X9 AWD Performance Charging Guide: Time, Speed, Power
Price: $109,900
Available since 2001
Key EV Specs
110kWh
Battery Size (capacity)
580 km
Range (WLTP)
183 Wh/km
Efficiency
5.9 s
Acceleration (0-100 km/hr)
11 kW AC / 542 kW DC
Charge Power (max)
XPENG X9 AWD Performance Charging Overview and Charging Specs
The XPENG X9 AWD Performance is equipped with a 110 kWh battery and supports both AC and DC charging. With the right setup, you can charge conveniently at home or use public charging stations for faster top-ups. This guide covers charging times, costs, plug types, and tips to maximise efficiency. The X9 AWD Performance uses a Type 2 plug for AC charging and a CCS connector for DC fast charging, both standard in Australia.
| Battery size (capacity) | 110 kWh |
| Battery Size (useable) | 106 kWh |
| Battery Chemistry | NMC |
| Charge Port Type | Type 2 |
| Charge Port Location | Right Side - Rear |
| Charge Power (max) | 11 kW |
| Charge Speed | - |
| Charge Time (0-100%) | 11 hrs 30 mins |
XPENG X9 AWD Performance Charging Times and Speeds
The XPENG X9 AWD Performance has a charging limit of 11 kW AC. This means that a three-phase 22kW AC charger will only supply power at 11 kW AC. If you are using a 7.2 kW AC charger, power will be limited to 7.2 kW AC. The table below provides charging times across different charger types.
Use our EV charging calculator if you want to customise your charge level and speed.
Charging Station Comparison
| Charger Type | Power Output (Average) | 0–100% Time | 10–80% Time | Speed |
|---|---|---|---|---|
| Home AC (7kW) | 7 kW | 15.9 hr | - | 38 km/h |
| Public AC (22kW) | 11 kW | 10.1 hr | - | 60 km/h |
| DC Fast (50kW) | 50 kW | - | 94 min | 273 km/h |
| DC Fast (150kW) | 150 kW | - | 31 min | 820 km/h |
| Ultra-Fast DC (350kW) | 342 kW | - | 14 min | 1869 km/h |
XPENG X9 AWD Performance Charging Costs & Energy Use
The cost of charging a XPENG X9 AWD Performance will depend on where it is being charged. The costs of charging from home versus charging as a fast public charging station vary significantly.
The cost of fully charging a XPENG X9 AWD Performance on a typical home flat energy tariff of $0.35/kWh is $38.50.
The cost of fully charging the XPENG X9 AWD Performance at a fast public station, where rates as high as $0.7/kWh will be $77.00.
Use our EV charging calculator to get a personalised estimate of the charging costs for a XPENG X9 AWD Performance
CCS CompatibleXPENG X9 AWD Performance Fast Charging & Tesla Supercharger Compatibility
The XPENG X9 AWD Performance can charge from 10–80% in approximately 13 minutes on a high-power DC charger.
While most Tesla Superchargers in Australia now support non-Tesla EVs such as the XPENG X9 AWD Performance via the CCS2 standard, always check the Tesla app for station compatibility.
Charging Specifications:
Usable Battery Capacity:
110 kWh
Fast Charge Power (max):
542 kW
Fast Charge Power (avg):
342 kW
Max Fast Charging Speed:
2669 km/h
Charge Port:
Type 2
Port Location:
Right Side (Rear)
XPENG X9 AWD Performance Recommended Charge Level
The XPENG X9 AWD Performance uses an NMC battery. The typical recommended charge limit is 80% to 90% for daily use and only charge to 100% for longer trips.
The recommended charge limit for NMC batteries is due to higher degradation risk from a higher state of charge.
Check your owners manual for specific recommendations for the XPENG X9 AWD Performance.
XPENG X9 AWD Performance Bidirectional Charging (V2G/V2H/V2L)
The XPENG X9 AWD Performance currently supports bidirectional charging features such as Vehicle-to-Load (V2L).
| Feature | Supported | Max Power Output |
|---|---|---|
| Vehicle-to-Grid (V2G) | No | - |
| Vehicle-to-Home (V2H) | No | - |
| Vehicle-to-Load (V2L) | Yes | 6 kW |
